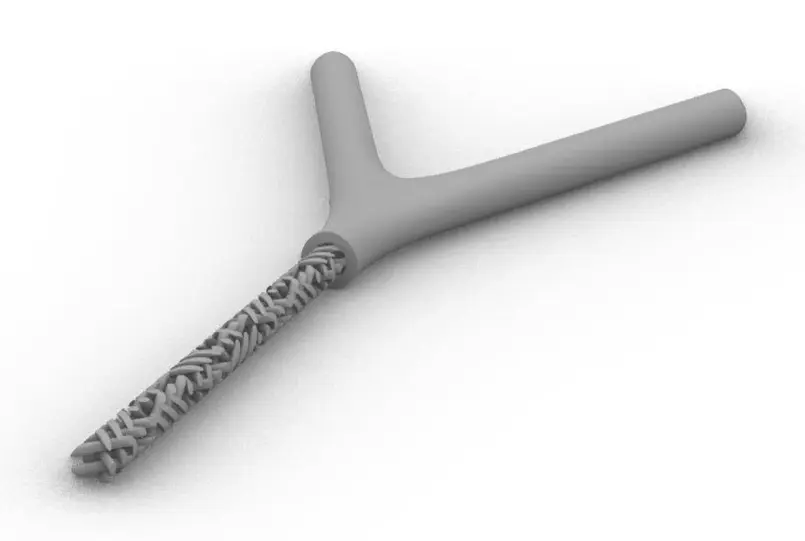

Crossmixer (OD: 1/8'' - 1/4'' - 3mm - 6mm)

Design and Operating Principles

Geometry: Grid-like arrangement of intersecting bars at 45°–90° angles, creating a complex network of flow channels

Mixing Mechanism: High mixing and extensional flows from repeated splitting/recombination at bar intersections

Key Feature: Design adapted for efficient mixing with short residence time. Adapted for application where intense mixing is required and for highly viscous fluids.

Available configurations:

Anchor shape, T shape, Y-shape, single inlet or multiple inlets

OD: 1/8’’ - 1/4’’ – 3 mm – 6 mm with custom internal diameter

Standard connector compatibilities: Swagelok Union – HPLC – hose barb and more on request

Materials: stainless steel – Hastelloy – biocompatible PMMA (specific materials like tantalum, titanium or precious metals on request)
