Design and Operating Principles

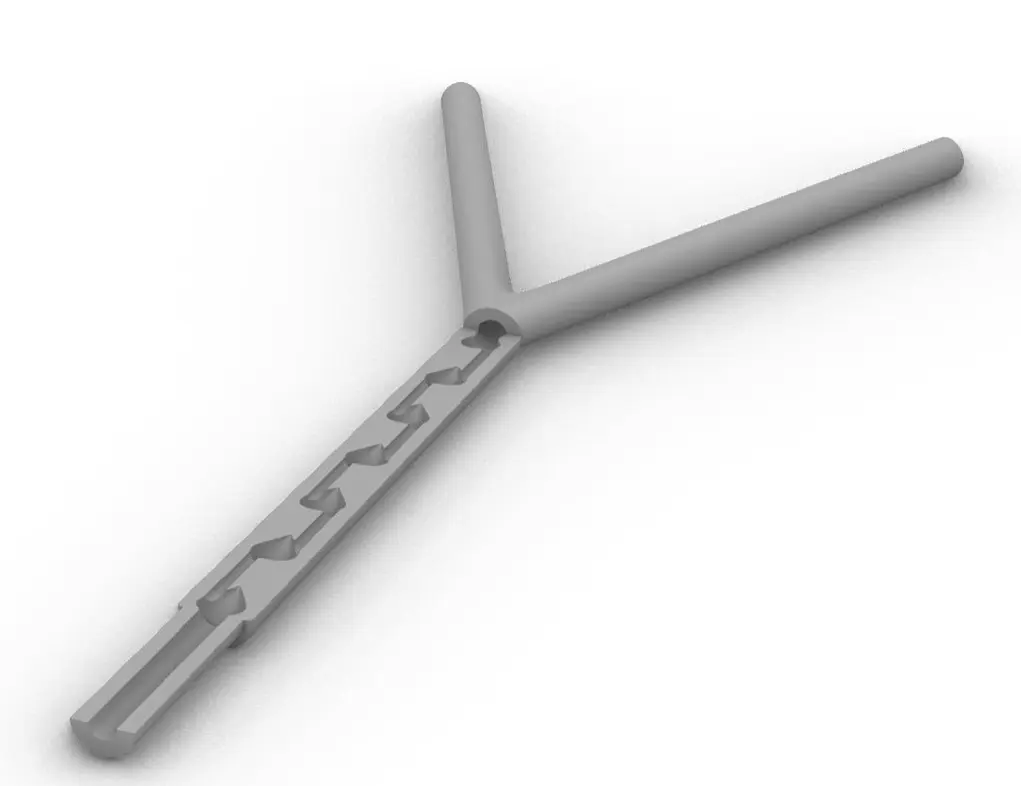

Geometry: Mixer with integrated droplet shape which create high shear and intense mixing.
Mixing Mechanism: Fluid acceleration to induce high shear stress for intense mixing efficiency.
Key Feature: High shear adapted to very intense mixing and continuous emulsions production. This mixer generate high pressure drop.
Available configurations:
Anchor shape, T shape, Y-shape, single inlet or multiple inlets
OD : 1/8’’ - 1/4’’ – 3 mm – 6 mm with custom internal diameter
Standard connector compatibilities: Swagelok Union – HPLC – hose barb and more on request
Materials: stainless steel – Hastelloy – biocompatible PMMA (specific materials like tantalum, titanium or precious metals on request)
